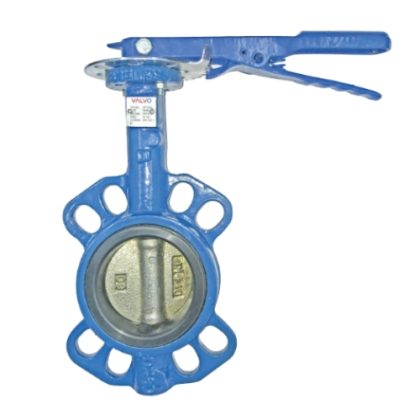

Fig. BF16WL Ductile Iron Butterfly Valve Semi Lugged Type, Lever Operated PN16

Material Specification

DescriptionMaterial
StemStainless Steel
Taper PinStainless Steel
DiscNickel Plated DI
SeatEPDM
BodyDuctile Iron
LeverCast Iron
C2-2
C2-1

Notes:

• Designed to BSEN593

• Pressure rating: PN16

• Working medium: water

• Temperature range:  0°C to 100°C (nominal pressure rating varies at different temperatures within the range)

• Face to Face: BSEN558-1 basic series 20

• Flanged to BS4504 / BS EN1092-2

• Top flange confirms to ISO 5211

• Alternative Disc material available on request

• Electric / Pneumatic actuators available

Dimensions

DNABCDEFHIKLP
65891743218145456550745230
8095181321816022.56550745230
100114200321818022.590709.552260
125127213321821022.590709.554260
150139225322224022.590709.556260
20017726038222951512510211.560360
Actual dimensions may vary
All dimensions are nominal (indicative)
