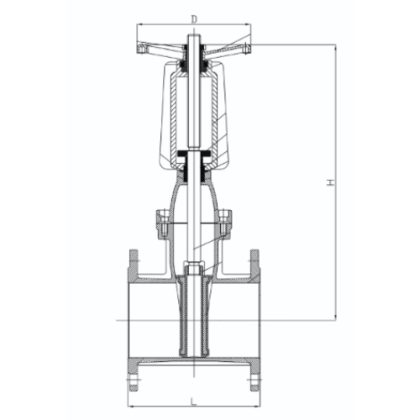

Fig. GIR16RS WRAS Ductile Iron Gate Valve Resilient Seat Rising stem PN16

Material Specification

DescriptionMaterial
BodyDuctile Iron
WedgeEPDM NBR
StemSS420
Bonnet Ductile Iron
Handwheel Ductile Iron
C1-9

Notes:

• WRAS Approved

• Designed to BS5163

• Pressure rating: PN16

• Working Medium: Water

• Flanged to BS4504 / BS EN1092-2

• Outside screw & yoke, rising stem

• Temperature range:  0°C to 100°C (nominal pressure rating varies at different temperatures within the range)

DNLHD
50178362180
65190402180
80203483200
100229534200
125254661250
150267727250
200292830320
2503301112380
3003561291380

Actual dimensions may vary
All dimensions are nominal (indicative)
