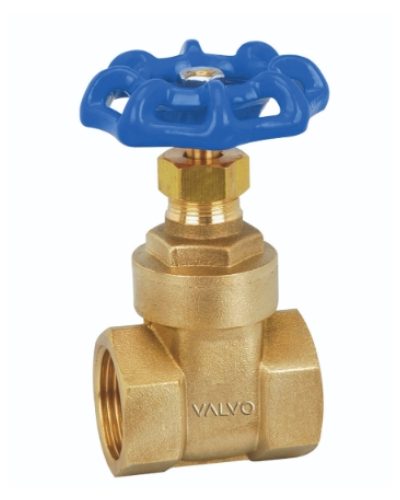

Material Specification
| Description | Material |
|---|---|
| Body | Brass CW617N |
| Bonnet | Brass CW617N |
| Stem | Brass CW617N |
| Disc | Brass CW617N |
| Packing | P.T.F.E |
| Handwheel | Cast Iron |
Notes:
• Pressure rating: PN16
• Working medium: Water
• Temperature range: 0°C to 100°C (nominal pressure rating varies at different temperatures within the range)
• Female threading (Taper)

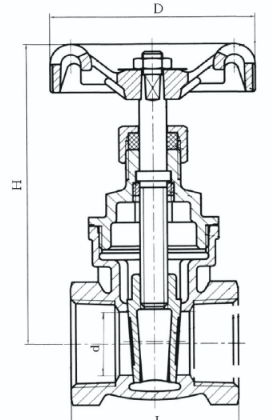

Dimensions:
| Inches | MM | d | L | H | D |
|---|---|---|---|---|---|
| 1/2” | 15 | 12.8 | 45 | 70 | 53 |
| 3/4” | 20 | 19 | 48 | 77 | 53 |
| 1” | 25 | 22 | 54 | 85 | 53 |
| 11/4” | 32 | 29 | 59 | 103 | 59 |
| 11/2” | 40 | 36 | 61 | 117 | 71 |
| 2” | 50 | 46.5 | 70 | 138 | 78 |
All dimensions are nominal (indicative)
