Material Specification
| Description | Material |
|---|---|
| Body | SS316 |
| Extension Tube | SS316 |
| Pressure Test Valves | DZR Brass |
Notes:
• Compliant to BS 7350
• Pressure Rating: PN16
• Temperature range: 0°C to 100°C (nominal pressure rating varies at different temperatures within the range)
• Suitable to fit between BS EN1092 flanges
• Can be used in conjunction with specific BFVs for regulation / balancing

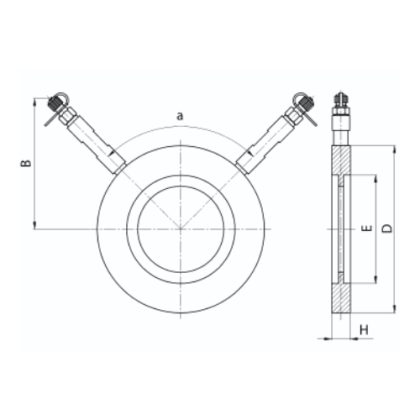

Dimensions
| DN | øD | øE | H | B | ά° |
|---|---|---|---|---|---|
| 65 | 127 | 68.7 | 18 | 112 | 90 |
| 80 | 142 | 80.7 | 18 | 118 | 90 |
| 100 | 162 | 105.1 | 18 | 125 | 90 |
| 125 | 192 | 129.95 | 18 | 135 | 90 |
| 150 | 218 | 155.4 | 18 | 145 | 90 |
| 200 | 273 | 203.2 | 18 | 165 | 90 |
| 250 | 329 | 254 | 18 | 185 | 90 |
| 300 | 384 | 304.8 | 18 | 205 | 90 |
| 350 | 444 | 337 | 21 | 222 | 90 |
| 400 | 495 | 385 | 21 | 240 | 90 |
| 450 | 555 | 432 | 21 | 261 | 90 |
| 500 | 617 | 482 | 21 | 283 | 90 |
| 600 | 734 | 591 | 25 | 325 | 90 |
Actual dimensions may vary
All dimensions are nominal (indicative)
